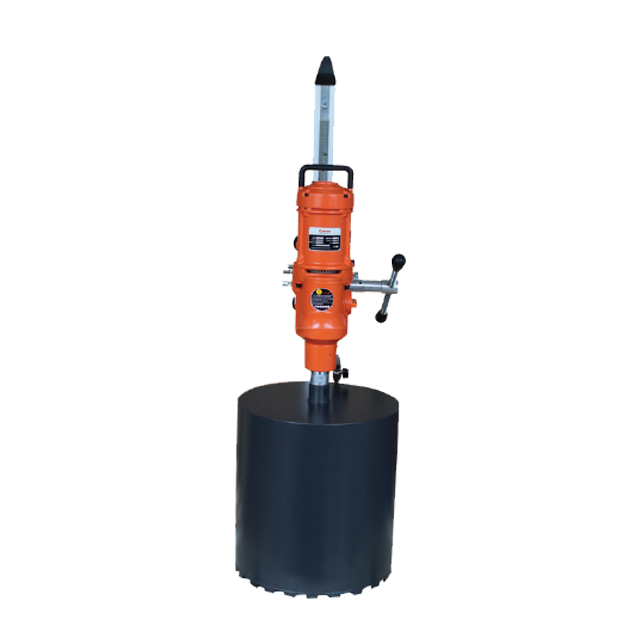

Diamond Core Drill

星空传媒天美传媒有限公司|星空mv梦幻mv天美mv|星空mv天美mv梦幻mv|星空天美梦幻mv视频|麻花星空mv天美大象 Adjustable aluminum alloy frame, can be drilling inclined hole 0-45.Light, easy to transport and

install drill frame tight and equipped with wheels.Vacuum base, can quickly, easily set up.Frame

with general fast connecting block, quick installation and is suitable for the majority of products

星空传媒天美传媒有限公司|星空mv梦幻mv天美mv|星空mv天美mv梦幻mv|星空天美梦幻mv视频|麻花星空mv天美大象 On the market. Base, frame, the bracket and all adjstabale

screw can be used with the pushing handle attached to adjust.

TECHNICAL PARAMETER

	Concrete Drilling Range(mm)	Rated Voltage(v)	Rated Frequency(Hz)	Rated Input Power(w)	No-load Speed(rpm)	Cable length(m)	Borehole Depth(mm)	Net/Gross Weight(Kgs)	Packing Size(cm)
SCY-4050C	~16”(~405)	110/220~	50-60	5180	340/530	3.5	600	32/35	1043824
SCY-4050CE	~16”(~405)	110/220~	50-60	5180	100-340/530	3.5	600	32/35	1043824
SCY-4050/3C	~16”(~405)	110/220~	50-60	5180	330/500/660	3.5	600	32/35	1043824
SCY-4050/3CE	~16”(~405)	110/220~	50-60	5180	100-330/500/660	3.5	600	32/35	1043824
SCY-4550C	~18”(~455)	110/220~	50-60	5380	300/470	3.5	600	33/36	1043824
SCY-4550CE	~18”(~455)	110/220~	50-60	5380	100-300/470	3.5	600	33/36	1043824
SCY-4550/3C	~18”(~455)	110/220~	50-60	5380	290/430/580	3.5	600	33/36	1043824
SCY-4550/3CE	~18”(~455)	110/220~	50-60	5380	100-290/430/580	3.5	600	33/36	1043824
SCY-5050C	~20”(~505)	110/220~	50-60	5380	280/420	3.5	600	34/37	1043824
SCY-5050CE	~20”(~505)	110/220~	50-60	5380	100-280/420	3.5	600	34/37	1043824
SCY-5050/3CE	~20”(~505)	110/220~	50-60	5380	280/420/550	3.5	600	34/37	1043824
SCY-5050/3CE	~20”(~505)	110/220~	50-60	5380	100-280/420/550	3.5	600	34/37	1043824
